Epoxy resin plays an important role in the automotive coatings industry. With its excellent adhesion, corrosion resistance, chemical resistance, and mechanical strength, epoxy resin is widely used in automotive primers, electrocoat systems, protective coatings, and various automotive component coatings.
During vehicle manufacturing, metal surfaces are exposed to moisture, road salt, chemicals, temperature fluctuations, and mechanical stress. Without effective surface protection, these conditions can accelerate corrosion and reduce the service life of automotive components.
Epoxy resin-based coatings provide reliable protection by forming a strong, durable film on properly prepared metal surfaces. They help improve corrosion resistance, enhance coating adhesion, and extend the service life of vehicle bodies and components.
As the automotive industry continues to develop, particularly in electric vehicles and lightweight vehicle manufacturing, the demand for high-performance automotive coating materials is increasing. Epoxy resin remains an important raw material in the development of advanced automotive coating systems.
Epoxy resin offers several properties that make it suitable for automotive coating formulations.
One of the most important properties of epoxy resin is its strong adhesion to metal substrates, including steel and aluminum when properly pretreated.
This helps automotive coatings bond firmly to vehicle surfaces, reducing the risk of peeling, blistering, and coating delamination.
Good adhesion also improves the performance of multi-layer coating systems, where primers and subsequent coating layers must work together.
Automotive components are frequently exposed to water, humidity, road salt, and corrosive substances.
Epoxy resin-based coatings provide an effective protective barrier that helps prevent moisture and corrosive agents from reaching metal substrates.
This property makes epoxy resin particularly valuable in automotive primers, chassis coatings, and protective coatings for metal components.
Vehicles come into contact with various chemicals during operation and maintenance, including oils, fuels, lubricants, cleaning agents, and road contaminants.
Properly formulated epoxy coatings can provide resistance to many of these substances, helping protect automotive components against chemical damage.
After curing with a suitable hardener, epoxy resin forms a cross-linked polymer structure with good hardness, adhesion, and mechanical strength.
These characteristics help coatings withstand abrasion, impact, and other mechanical stresses encountered during vehicle manufacturing and operation.
Epoxy resin can be formulated with different curing agents, pigments, fillers, and additives to meet specific automotive coating requirements.
It is widely used in multi-layer coating systems, especially where corrosion protection and substrate adhesion are essential.
Epoxy resin is used in different automotive coating systems depending on the substrate, operating environment, and required protective performance.
Automotive primers are essential for preparing vehicle surfaces before the application of intermediate and topcoat layers.
Epoxy resin is commonly used in primer formulations because of its excellent adhesion and corrosion protection properties.
Its main functions include:Improving adhesion between metal substrates and subsequent coating layers.Protecting steel surfaces against moisture and corrosion.Providing a stable foundation for automotive paint systems.Improving the durability of the overall coating structure.
Epoxy primers are widely used on automotive body panels, metal frames, and other components requiring reliable surface protection.

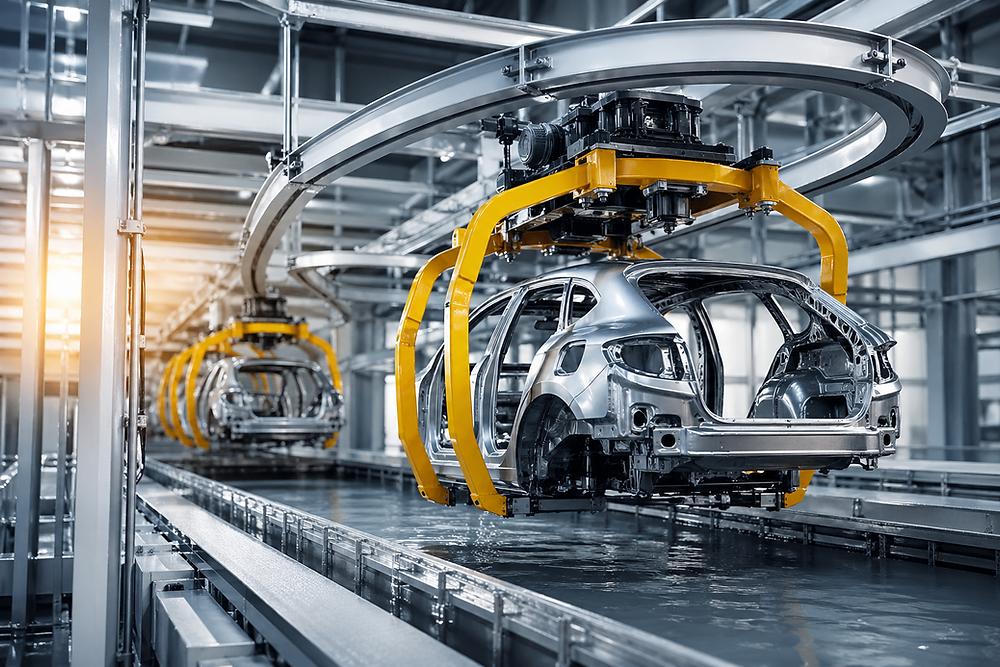

Electrocoating, also known as E-coating, is an important coating technology used in modern automotive manufacturing.
Epoxy resin is widely used in cathodic electrocoat formulations, particularly for automotive body protection.
During the electrocoating process, vehicle bodies are immersed in a water-based coating bath. An electrical current helps deposit the coating uniformly onto conductive surfaces, including areas that are difficult to reach using conventional spray coating.
The main advantages of epoxy-based electrocoating include:Excellent corrosion protection,Uniform coating coverage,Good adhesion to metal substrates,Protection of complex structures and recessed areas,Efficient application in automated production lines,Cathodic epoxy electrocoat systems are widely used as the primary corrosion-protection layer in automotive body manufacturing.

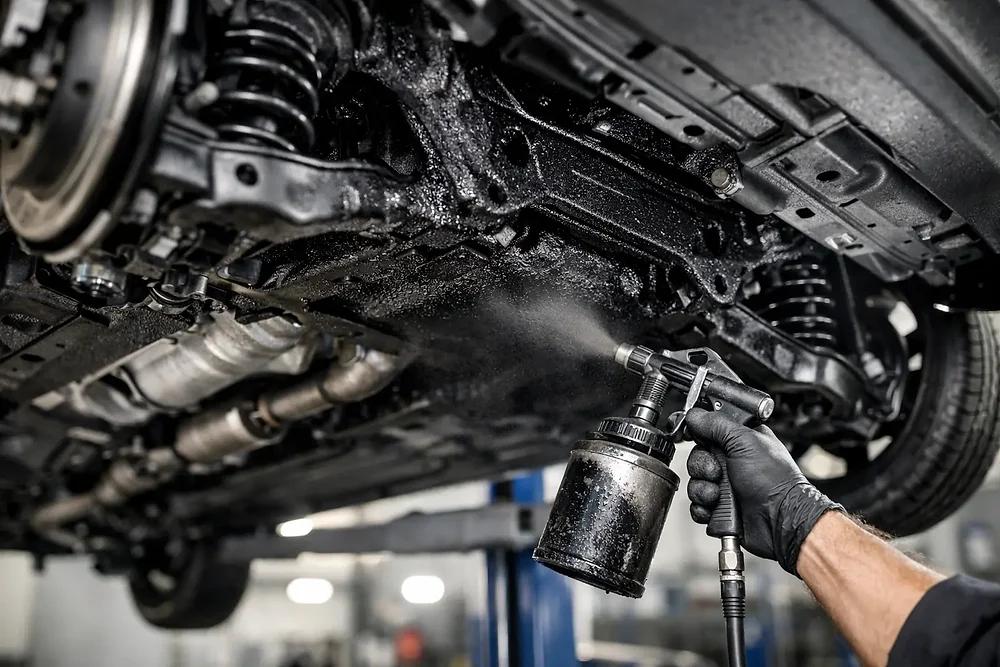

The chassis and underbody of a vehicle are continuously exposed to harsh operating conditions, including water, mud, road salt, gravel, and mechanical impact.
Epoxy resin-based protective coatings can help improve the corrosion resistance and durability of these components.
Typical applications include:Automotive chassis and frame protection,Metal suspension components,Underbody structural parts,Automotive brackets and supporting components,Commercial vehicle frames.
Depending on the formulation, epoxy coatings can provide a strong protective barrier against environmental exposure and chemical corrosion.
In addition to vehicle bodies and chassis, epoxy resin is also used in protective coatings for various automotive components.
These include metal parts that require good adhesion, chemical resistance, and mechanical durability.
Common applications include:Engine-related metal components,Transmission housings,Metal brackets and structural parts,Automotive electrical enclosures,Industrial automotive equipment.
Epoxy resin-based coatings help protect these components from corrosion and environmental damage, improving their service life.
The rapid development of electric vehicles (EVs) has created new opportunities for high-performance coating materials.
Epoxy resin is used in selected protective coating systems for electric vehicle components, particularly where electrical insulation, adhesion, and corrosion protection are required.
Potential applications include:Battery pack metal enclosures,Battery tray protection systems,Electrical control housings,Motor and electrical component protection,Structural metal components.
For EV applications, coating manufacturers must consider specific requirements such as thermal stability, electrical properties, chemical compatibility, and battery-system safety. The actual performance depends on the complete formulation and application design.
